COMBINED UNITS
Thanks to the vast experience gained in this sector, X2 Solution is able to design and develop combined units for separating sand and greasy oils from wastewater.
All products are designed to last over time and aim to facilitate the operator as much as possible. For this reason, our company has always paid special attention to detail to deliver sturdy and durable products.

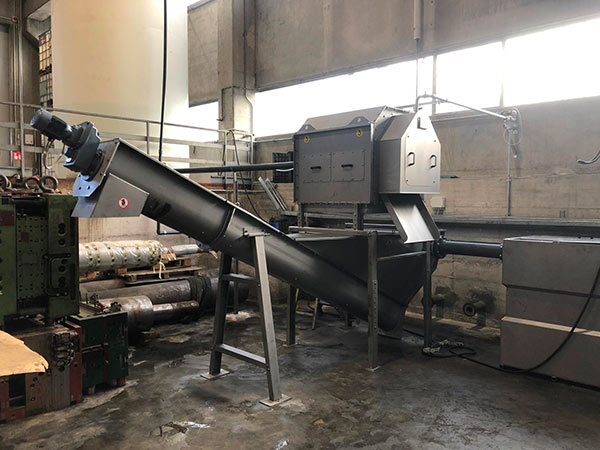

Following a careful assessment of the client’s needs, X2 Solution develops customized, sturdy, durable and tailor-made machines for combined treatments. Thanks to our competent and qualified staff, we are always able to find the ideal solution for any need.
If you are looking for a combined unit fitted with a degreasing system, a longitudinal hopper for sand separation or any other type of equipment for your depuration plant, do not hesitate to contact us.

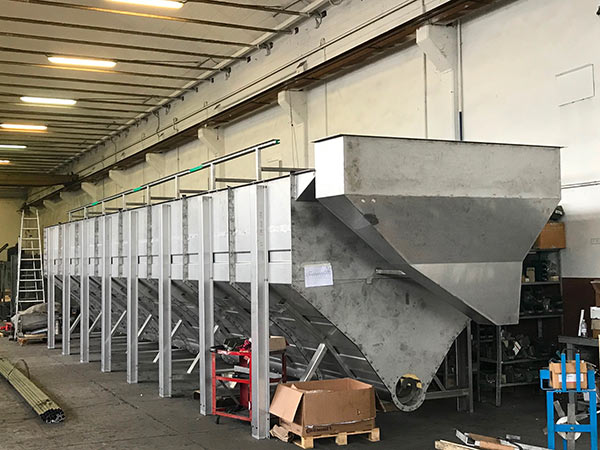

SAND CLASSIFIER WITH LONGITUDINAL HOPPER

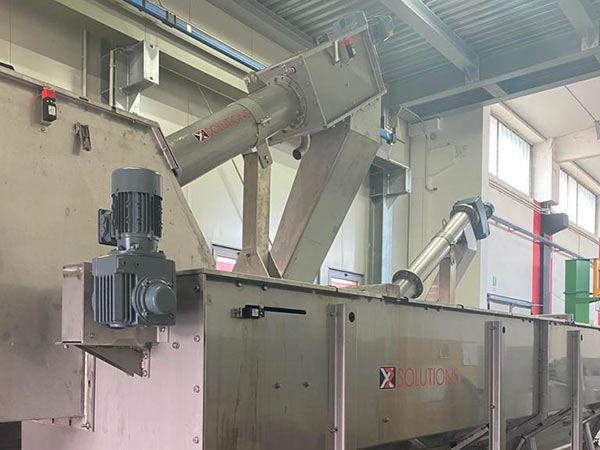

Thanks to our longitudinal hopper, we can provide a wide range of sand separation solutions for industrial and civil wastewater depuration plants.
COMBINED
UNIT
Thanks to the experience gained over years of activity, we are able to design and manufacture solid, efficient and customized machines to meet any individual demand related to wastewater treatment and sand removal.
COMBINED UNIT WITH DEGREASING SYSTEM

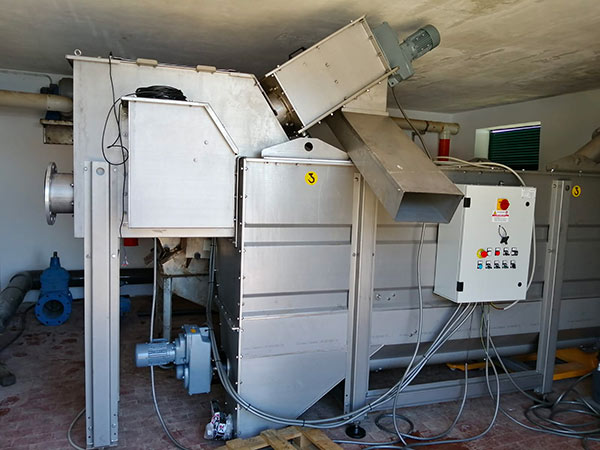

We supply combined units equipped with a degreasing system, which has the task of performing a primary screening step to extract solids and fatty oils from effluent by means of a screw screen.
MINI
COMBINED
UNITS

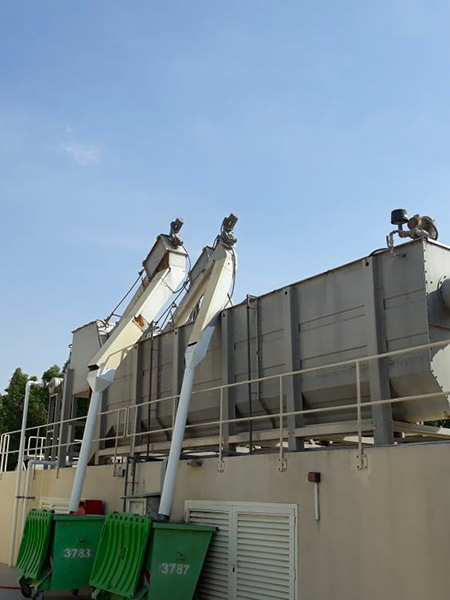

We design and manufacture combined screening and desanding machines. These machines are sized to suit small depuration plants.
DESCRIPTION AND FUNCTION OF COMBINED UNITS
Combined units are designed to remove sands, oils and greases. The effluent passes through the screen while suspended solids remain trapped. This causes the level of the upstream liquid to rise. When the liquid reaches a preset value, the screw screen activates and starts cleaning the screen. The screenings are washed as they are separated from the liquid to reduce their organic matter content and may undergo further washing in the conveyor zone. The screenings are moved to the screw compactor zone where they are compressed before being discharged. After passing through the screen, the effluent enters the sedimentation hopper where desanding occurs. Coarse and fine air bubbles generated by an air blower facilitate the sand sedimentation process, while the flotation of greasy substances occurs. The sand deposited inside the hopper is lifted and dewatered before being discharged by a shaftless screw conveyor. Following flotation, the greasy substances are collected by a scraper and discharged through a dedicated pipeline. The water level inside the sedimentation hopper is preset to optimize sand separation and flotation of greasy substances. The effluent discharged from the system is now ready to undergo further treatment.
